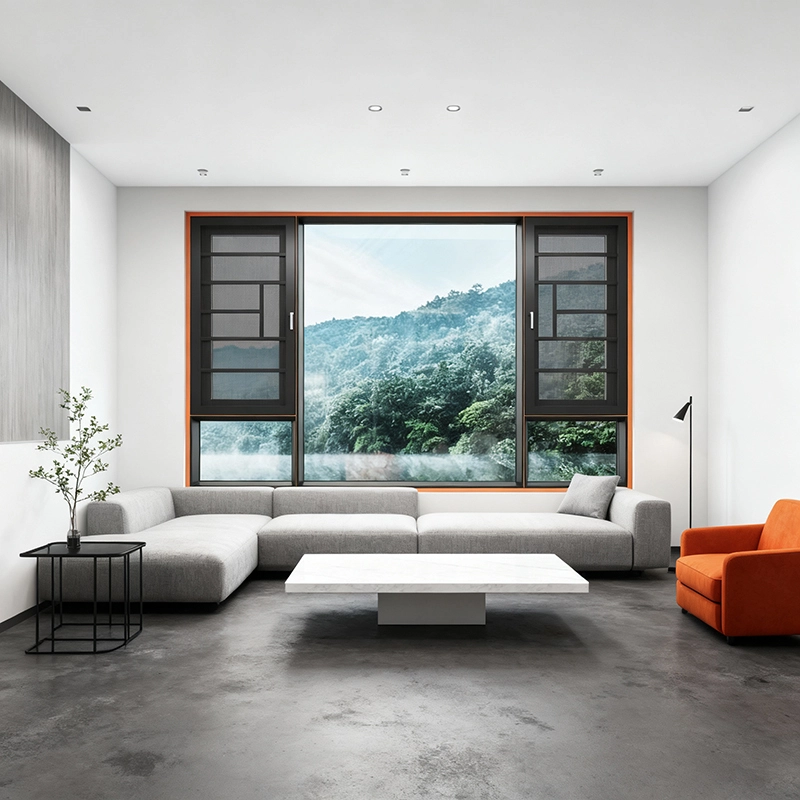

Aluminum turin-8126 casement push out system window with new design
Product Information
The Turin 8126 has a luxurious configuration with dual protection, achieving a 1-second silent window closure and multiple sealing designs.
In summer, indoor cold air cannot escape and outdoor heat cannot enter. You can also pair it with electric blinds to bring you a different quality of life.
Products Specifications
|
Thermal Insulation |
2.3W/㎡K |
Profile |
frame width 2.0mm |
|
Acoustic Performance |
<45DB |
Insulation strip |
PA66GF25-20mm High performance single cavity insulation strip |
|
Air Tightness |
≦0.4m³(㎡h) |
Glass |
5mm+27A+5mmFireproof tempered glass |
|
Wind Load Resistance |
>5Kpa |
Colour |
Aksu Powder coating: Grey ,coffee ,Black crystal sand,Ceramic White,Smooth white,Other colors can be customized |
|
Water Penetration |
≧500PA |
Handware |
CMECH hardware |
|
Warranty |
3-5Years |
Opening Style |
casement push out |
|
Application |
Residential, Commercial |
|
|
Product details one
Adopting standard aluminum profiles with a fan frame thickness of 2.0mm and a double break bridge structure design, it effectively blocks heat transfer.
Product details two
The indoor opening fan adopts anti-collision angle design, which not only increases the artistic sense of doors and windows, but also protects the safety of family members.
Product details three
Configure PA66 single cavity insulation strip, combined with EPDM rubber strip automotive grade sealing strip, with stronger water tightness and air tightness of the three seals.
Product details four
Stepped invisible drainage system is adopted, and the concept of isobaric chamber is introduced to ensure free flow of water without backflow. Even in rainstorm, drainage can be more smooth.
