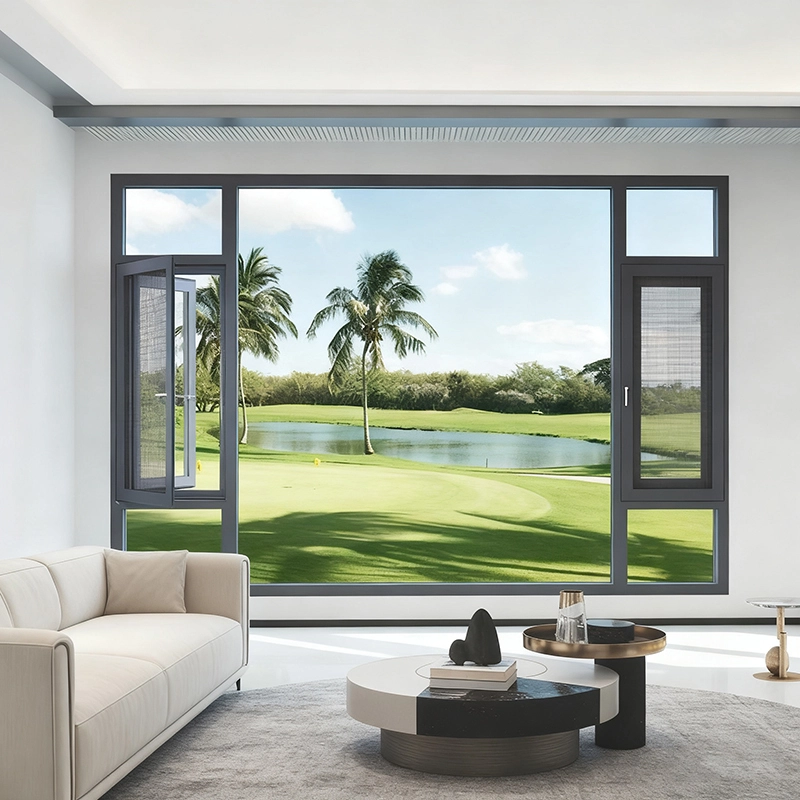

Fenêtre à battants en aluminium Karara-8116 avec système d'extraction avec moustiquaire
製品情報
The IMLANG 8116 system window has both a simple appearance and rich connotation, with a flat interior and exterior, simple and beautiful. The aluminum profile thickness is 2.0, which improves the thermal insulation performance of the window and has excellent sound and heat insulation effects. Adopting CMECH hardware is exquisite, reliable and practical, adding a unique charm to your home.
Products Specifications
Thermal Insulation | 2.3W/㎡K | Profile | frame width 2.0mm |
Acoustic Performance | <45DB | Insulation strip | PA66GF25-20mm High performance single cavity insulation strip |
Air Tightness | ≦0.4m³(㎡h) | ガラス | 5mm+27A+5mm toughened glass |
Wind Load Resistance | >5kpa | 色 | Powder coating/Fluorocarbon process, environmentally friendly and weather resistant |
Water Penetration | ≧500PA | Handware | America CMECH hardwareOpening |
保証 | 3-5 Years | スタイル | casement push out |
応用 | Residential, Commercial |
|
|
Product details one
Adopts aerospace grade aluminum profile, fan frame thickness 2.0mm, profile cavity, excellent insulation effect, long service life.
Product details two
It is equipped with anti-collision Angle, warm and safe, and can effectively improve safety after installation, especially for families with children.
Product details three
Equipped with high transparency fine yarn mesh, mosquito proof and safe.
Product details four
The American CMECH handle is more durable and beautiful, and can be used 50000 times on average with long service life
